KY TYPE BIA, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~150°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE BIA PDF File

Download KY TYPE BIA, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

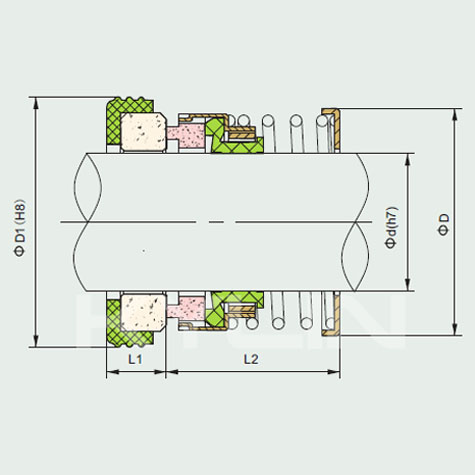

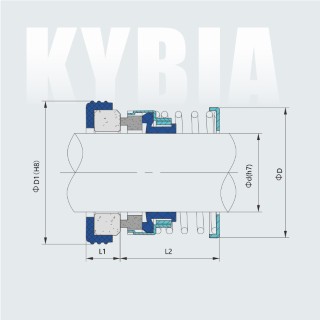

Part Numbers	d	D	D1	L1	L2
KY TYPE BIA-14	14	27.5	30	5	18.7
KY TYPE BIA-16	16	28.5	32	5	21
KY TYPE BIA-18	18	31.2	35	7.5	22.5
KY TYPE BIA-20	20	31.7	35	8	21
KY TYPE BIA-24	24	40.2	39	8	25.5
KY TYPE BIA-25	25	40.2	40	8	25.5
KY TYPE BIA-28	28	44.1	43	8	25.5
KY TYPE BIA-30	30	45.1	45	9	25.5
KY TYPE BIA-32	32	49	48	9	33.5
KY TYPE BIA-33	33	49	48	9	33.5
KY TYPE BIA-35	35	50.2	50	9	33.5
KY TYPE BIA-38	38	55.3	56	9	33.5
KY TYPE BIA-40	40	57	58	9	33.5
KY TYPE BIA-43	43	60.7	61	9.5	36.5
KY TYPE BIA-45	45	62.5	63	9.5	38
KY TYPE BIA-48	48	66.5	66	9.5	38
KY TYPE BIA-50	50	68.6	70	9.5	38
KY TYPE BIA-53	53	70.8	73	9.5	41
KY TYPE BIA-55	55	72.4	75	9.5	41
KY TYPE BIA-58	58	80	78	9.5	42
KY TYPE BIA-60	60	83	80	9.5	42
KY TYPE BIA-65	65	87.2	85	9.5	43
KY TYPE BIA-70	70	91.6	92	11	45
KY TYPE BIA-75	75	99.4	97	12	48
KY TYPE BIA-80	80	104.6	104	12	55
KY TYPE BIA-85	85	111	109	12	64.2
KY TYPE BIA-90	90	113	114	12	66.2
