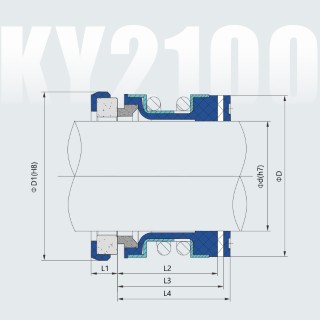

KY TYPE 2100, John Crane TYPE 2100, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water,oil, and weakly-corrosive mediums.
Temperature: -40°C~150°C
Pressure: ≤1.2MPa
Speed: ≤ 13 m/Sec

Preview the KY TYPE 2100 PDF File

Download KY TYPE 2100, John Crane TYPE 2100, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

Part Numbers	d	D	D1	L1	L2
KY TYPE 2100-3/8"	9.525	20	22.225	7.9	15.2
KY TYPE 2100-1/2"	12.7	24	25.4	7.9	15.2
KY TYPE 2100-5/8"	15.875	26	31.75	10.3	15.2
KY TYPE 2100-3/4"	19.05	32	34.93	10.3	20.2
KY TYPE 2100-7/8"	22.225	36	38.1	10.3	20.2
KY TYPE 2100-1"	25.4	39	41.28	11.1	20.2
KY TYPE 2100-1 1/8"	28.575	42	44.45	11.1	26.2
KY TYPE 2100-1 1/4"	31.75	46	47.63	11.1	26.2
KY TYPE 2100-1 3/8"	34.925	49	50.8	11.1	26.2
KY TYPE 2100-1 1/2"	38.1	54	53.98	11.1	30.2
KY TYPE 2100-1 5/8"	41.275	56	60.33	12.7	30.2
KY TYPE 2100-1 3/4"	44.45	61	63.5	12.7	30.2
KY TYPE 2100-1 7/8"	47.625	64	66.68	12.7	30.2
KY TYPE 2100-2"	50.8	66	69.85	12.7	30.2
KY TYPE 2100-2 1/8"	53.975	69	76.2	14.3	30.2
KY TYPE 2100-2 1/4"	57.15	77	79.38	14.3	33.2
KY TYPE 2100-2 3/8"	60.325	80	82.55	14.3	33.2
KY TYPE 2100-2 1/2"	63.5	83	85.73	14.3	33.2
KY TYPE 2100-2 5/8"	66.675	88	85.73	15.9	33.2
KY TYPE 2100-2 3/4"	69.85	89	88.9	15.9	33.2
KY TYPE 2100-2 7/8"	73.025	96	95.25	15.9	33.2
KY TYPE 2100-3"	76.2	99	98.425	15.9	40.2
KY TYPE 2100-3 1/8"	79.375	103	101.6	19.8	40.2
KY TYPE 2100-3 1/4"	82.55	104	104.775	19.8	40.2
KY TYPE 2100-3 3/8"	85.725	108	107.95	19.8	40.2
KY TYPE 2100-3 1/2"	88.9	112	111.125	19.8	40.2
KY TYPE 2100-3 5/8"	92.075	114	114.3	19.8	40.2
KY TYPE 2100-3 3/4"	95.25	118	117.475	19.8	40.2
KY TYPE 2100-3 7/8"	98.425	122	120.65	19.8	40.2
KY TYPE 2100-4"	101.6	124	123.83	19.8	40.2

Part Numbers	d	D	D1	L1	L2	L3	L4
KY TYPE 2100-10	10	20	21	5	15.2	27.7	35.2
KY TYPE 2100-12	12	22	23	6	15.2	26.7	34.2
KY TYPE 2100-14	14	24	25	6	15.2	29.2	34.2
KY TYPE 2100-15	15	25	26	6	15.2	29.2	34.2
KY TYPE 2100-16	16	26	27	6	15.2	29.2	34.2
KY TYPE 2100-18	18	32	33	6	20.2	31.7	39.2
KY TYPE 2100-20	20	34	35	6	20.2	31.7	39.2
KY TYPE 2100-22	22	36	37	6	20.2	31.7	39.2
KY TYPE 2100-24	24	38	39	6	20.2	34.2	44.2
KY TYPE 2100-25	25	39	40	6	20.2	34.2	44.2
KY TYPE 2100-28	28	42	43	6	26.2	36.7	44.2
KY TYPE 2100-30	30	44	45	7	26.2	35.7	43.2
KY TYPE 2100-32	32	46	48	7	26.2	35.7	48.2
KY TYPE 2100-33	33	47	48	7	26.2	35.7	48.2
KY TYPE 2100-35	35	49	50	8	26.2	34.7	47.2
KY TYPE 2100-38	38	54	56	8	30.2	37.2	47.2
KY TYPE 2100-40	40	56	58	8	30.2	37.2	47.2
KY TYPE 2100-43	43	59	61	8	30.2	37.2	52.2
KY TYPE 2100-45	45	61	63	8	30.2	37.2	52.2
KY TYPE 2100-48	48	64	66	10	30.2	35.2	50.2
KY TYPE 2100-50	50	66	70	10	30.2	37.7	50.2
KY TYPE 2100-53	53	69	73	10	30.2	37.7	60.2
KY TYPE 2100-55	55	71	75	10	30.2	37.7	60.2
KY TYPE 2100-58	58	78	78	10	33.2	42.7	60.2
KY TYPE 2100-60	60	80	80	12	33.2	40.7	58.2
KY TYPE 2100-63	63	83	83	12	33.2	40.7	58.2
KY TYPE 2100-65	65	85	85	12	33.2	40.7	68.2
KY TYPE 2100-68	68	88	90	12	33.2	40.7	68.2
KY TYPE 2100-70	70	90	92	12	33.2	48.2	68.2
KY TYPE 2100-75	75	99	97	12	40.2	48.2	68.2
KY TYPE 2100-80	80	104	105	14	40.2	47.7	77.7
KY TYPE 2100-85	85	109	110	14	40.2	47.7	77.7
KY TYPE 2100-90	90	114	115	14	40.2	52.7	77.7
KY TYPE 2100-95	95	119	120	14	40.2	52.7	77.7
KY TYPE 2100-100	100	124	125	14	40.2	52.7	77.7
