KY TYPE 443, SEALOL TYPE 843, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil, and weakly-corrosive fluids.
Temperature: -20°C~150°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 443 PDF File

Download KY TYPE 443, SEALOL TYPE 843, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

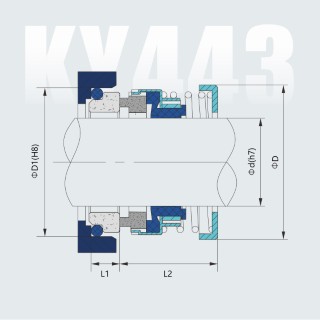

Part Numbers	d	D	D1	L1	L2
KY TYPE 443-10	10	20	21	8.5	24.1
KY TYPE 443-12	12	21.7	23	8.5	24.1
KY TYPE 443-14	14	24.5	25	8.5	26.7
KY TYPE 443-16	16	26.65	27	8.5	26 7
KY TYPE 443-18	18	30.35	33	10	27.7
KY TYPE 443 20	20	31.75	35	10	27.7
KY TYPE 443-22	22	33.55	37	10	27.7
KY TYPE 443-24	24	38.3	39	10	30.2
KY TYPE 443-25	25	38.3	40	10	30.2
KY TYPE 443-28	28	42.2	43	10	32.7
KY TYPE 443-30	30	43.95	45	10	32.7
KY TYPE 443-32	32	45.7	48	10	32.7
KY TYPE 443-33	33	46.75	48	10	32.7
KY TYPE 443-35	35	49.1	50	10	32.7
KY TYPE 443-38	38	52.4	56	11	34.2
KY TYPE 443-40	40	55.7	58	11	34.2
KY TYPE 443-43	43	55.8	61	11	34.2
KY TYPE 443-45	45	61.2	63	11	34.2
KY TYPE 443-48	48	64.35	66	11	34.2
KY TYPE 443-50	50	67.35	70	13	34.7
KY TYPE 443-53	53	70.65	73	13	34.7
KY TYPE 443-55	55	71.65	75	13	34.7
KY TYPE 443-58	58	78.4	78	13	39.7
KY TYPE 443-60	60	78.4	80	13	39.7
KY TYPE 443-63	63	81.5	83	13	39.7
KY TYPE 443-65	65	84.3	85	13	39.7
KY TYPE 443-68	68	89.65	90	15.3	37.4
KY TYPE 443-70	70	89.65	92	15.3	44.9
KY TYPE 443-75	75	96.8	97	15.3	44.9
KY TYPE 443-80	80	104	105	15.7	44.5
KY TYPE 443-85	85	107.95	110	15.7	44.5
KY TYPE 443-90	90	111.1	115	15.7	49.5
KY TYPE 443-95	95	119	120	15.7	49.5
KY TYPE 443-100	100	124	125	15.7	49.5
