KY TYPE 108, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS304)

Working Conditions:
Pumps: Centrifugal pumps, pipe pumps, ordinary industrial pumps, etc.
Temperature: -20°C~110°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 108 PDF File

Download KY TYPE 108, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

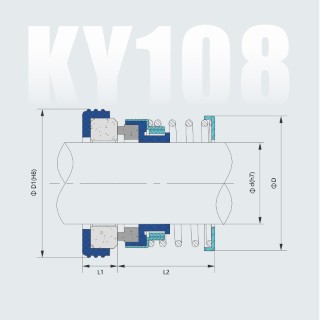

Part Numbers	d	D	D1	L1	L2
KY TYPE 108-9	9	20	21	5	15
KY TYPE 108-10	10	20	21	5	15
KY TYPE 108-11	11	22	24	5	15
KY TYPE 108-12	12	22	26	5	15
KY TYPE 108-14	14	24.5	26	5	20
KY TYPE 108-15	15	26.5	27	5	20
KY TYPE 108-16	16	26.5	27	5	20
KY TYPE 108-17	17	32	33	5	20
KY TYPE 108-18	18	32	33	5	20
KY TYPE 108-19	19	34	35	5	20
KY TYPE 108-20	20	34	35	5	20
KY TYPE 108-22	22	36	37	6	22
KY TYPE 108-25	25	39	40	7	25
KY TYPE 108-28	28	42	43	7	28
KY TYPE 108-30	30	44	45	7	28
KY TYPE 108-35	35	49	50	8	29
KY TYPE 108-40	40	56	58	8.5	31.5
KY TYPE 108-45	45	61	63	8.5	31.5
KY TYPE 108-50	50	67	70	8.5	36.5
KY TYPE 108-55	55	72	75	8.5	36.5
