KY TYPE 70, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Pumps: Submersible pumps and common multi-stage deep well pumps.
Temperature: -20°C~110°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 70 PDF File

Download KY TYPE 70, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

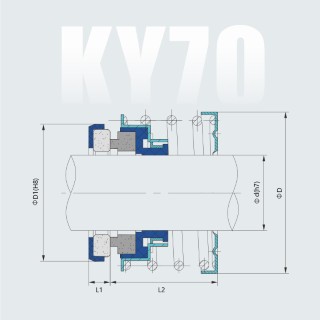

Part Numbers	d	D	D1	L1	L2
KY TYPE 70-15	15	31.5	29.5	8	18/24
KY TYPE 70-16	16	31.5	29.5	8	18/24
KY TYPE 70-20	20	37	35	5	15
KY TYPE 70-25	25	44.2	40	5.5	16.5
KY TYPE 70-30	30	48.6	45	6	18
KY TYPE 70-35	35	54	50	6.5	19.5
KY TYPE 70-40	40	60.4	58	7.5	20.5
