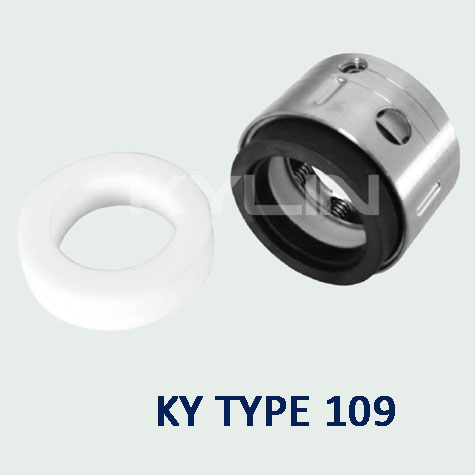

KY TYPE 109, John Crane TYPE 109, PTFE Wedge Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (Teflon)
Spring and Metal Part (SS304/SS316)

Working Conditions:
Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
Temperature: -40°C~200°C
Pressure: ≤1MPa
Speed: ≤ 20 m/Sec

Preview the KY TYPE 109 PDF File

Download KY TYPE 109, John Crane TYPE 109, PTFE Wedge Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

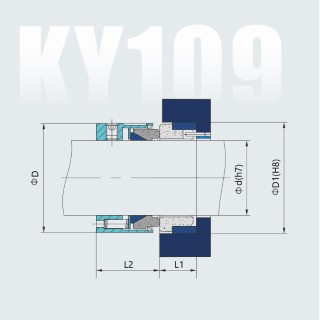

Part Numbers	d	D	D1	L1	L2
KY TYPE 109-1/2"	12.70	26.7	25.40	7.9	20.8
KY TYPE 109-5/8"	15.88	30.7	31.75	10.3	19.2
KY TYPE 109-3/4"	19.05	34.0	34.93	10.3	224
KY TYPE 109-7/8"	22.23	37.2	38.10	10.3	24
KY TYPE 109-1"	25.40	40.3	41.28	11.1	25.6
KY TYPE 109-1 1/8"	28.58	43.5	44.45	11.1	27.2
KY TYPE 109-1 1/4"	31.75	48.3	47.63	11.1	27.2
KY TYPE 109-1 3/8"	34.93	51.5	50.80	11.1	28.8
KY TYPE 109-1 1/2"	38.10	54.6	53.98	11.1	28.8
KY TYPE 109-1 5/8"	41.28	61.0	60.33	12.7	35.2
KY TYPE 109-1 3/4"	44.45	64.2	63.50	12.7	35.2
KY TYPE 109-1 7/8"	47.63	67.3	66.68	12.7	35.2
KY TYPE 109-2"	50.80	70.5	69.85	12.7	35.2
KY TYPE 109-2 1/8"	53 98	76.9	76.20	14.3	43.2
KY TYPE 109-2 1/4"	57.15	80.0	79.38	14.3	43.2
KY TYPE 109-2 3/8"	60.33	83.2	82.55	14.3	43.2
KY TYPE 109-2 1/2"	63.50	86.4	85.73	14.3	43.2
KY TYPE 109-2 5/8"	66.68	89.6	85.73	15.9	43.2
KY TYPE 109-2 3/4"	69.85	92.7	88.90	15.9	43.2
KY TYPE 109-2 7/8"	73.03	95.9	95.25	15.9	43.2
KY TYPE 109-3"	76.20	97.5	98.43	15.9	43.2
KY TYPE 109-3 1/8"	79.38	100.7	101.60	19.8	43.2
KY TYPE 109-31/4"	82.55	105.4	104.78	19.8	43.2
KY TYPE 109-3 3/8"	85.73	108.6	107.95	19.8	43.2
KY TYPE 109-3 1/2"	88.90	111.8	111.13	19.8	43.2
KY TYPE 109-3 5/8"	92.08	115.0	114.30	19.8	43.2
KY TYPE 109-3 3/4"	95.25	118.1	117.48	19.8	43.2
KY TYPE 109-3 7/8"	98.43	121.3	120.65	19.8	43.2
KY TYPE 109-4"	101.60	124.5	123.83	19.8	43.2
