KY TYPE WB2, Teflon Bellow Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Rotary Ring (Teflon/SiC/SSiC)
Secondary Seal (Teflon)
Spring and Metal Part (SS304/SS316)

Working Conditions:
Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, and nitric acid with various degrees, etc.
Temperature: ≤120°C
Pressure: ≤0.5MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE WB2 PDF File

Download KY TYPE WB2, Teflon Bellow Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

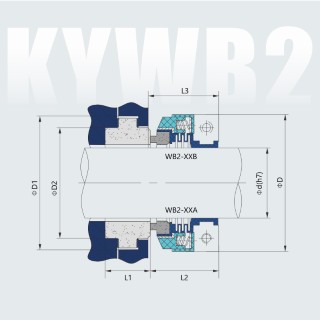

Part Numbers	d	D	D1	D2	L1	L2	L3
KY TYPE WB2-1"	25.4	60	54	42.86	17.5	42	45
KY TYPE WB2-1 1/8"	28.6	67	60	46.03	27	42	45
KY TYPE WB2-1 1/4"	31.75	69	65	50.8	27	42	45
KY TYPE WB2- 1 3/8"	34.93	72	68	53.98	27	42	45
KY TYPE WB2- 1 1/2"	38.1	76	71	57.15	27	42	45
KY TYPE WB2- 1 5/8"	41.28	80	78	63.5	27	42	45
KY TYPE WB2-1 3/4"	44.45	84	81	66.68	27	44	46
KY TYPE WB2- 1 7/8"	47.63	86	84	69.85	27	44	46
KY TYPE WB2- 2"	50.8	90	87	73.03	27	46	46
KY TYPE WB2- 2 1/8"	53.98	95	97	79.38	33.5	46	46
KY TYPE WB2- 2 1/4"	57.15	98	100	82.55	33.5	46	46
KY TYPE WB2- 2 3/8"	60.3	100	103	85.73	33.5	46	46
KY TYPE WB2-25	25	60	60	47	27	42	45
KY TYPE WB2-30	30	67	67	53	27	42	45
KY TYPE WB2-32	32	69	64	50.7	27	42	45
KY TYPE WB2-35	35	72	70	57	27	42	45
KY TYPE WB2-40	40	78	76	62	26	42	45
KY TYPE WB2-45	45	84	82	67	27	44	46
KY TYPE WB2-50	50	88	86	72	27	46	46
KY TYPE WB2-55	55	95	90	77	27	46	46
KY TYPE WB2-60	60	100	95	82	27	46	46
KY TYPE WB2-65	65	105	100	87	27	46	46
