KY TYPE 212, Teflon Bellow Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Rotary Ring (Teflon/SiC/SSiC)
Secondary Seal (Viton/Teflon)
Spring and Metal Part (SS304/SS316)

Working Conditions:
Mediums: Various gases without any grains.
Temperature: ≤120°C
Pressure: ≤0.6MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 212 PDF File

Download KY TYPE 212, Teflon Bellow Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

Standard 69

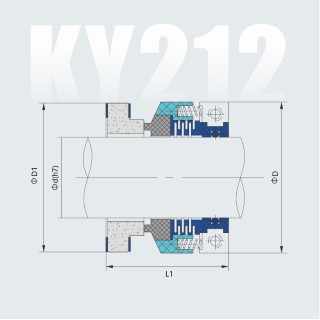

Part Numbers	d	D	D1	L1
KY TYPE 212-42	42	90	80	74
KY TYPE 212-50	50	100	101	74
KY TYPE 212-60	60	110	111	74
KY TYPE 212-70	70	120	121	74
KY TYPE 212-76	76	130	131	74
KY TYPE 212-80	80	130	131	74
KY TYPE 212-89	89	140	141	74
KY TYPE 212-95	95	150	151	74

Standard 79
Part Numbers	d	D	D1	L1
KY TYPE 212-40	40	90	88	74
KY TYPE 212-50	50	100	101	74
KY TYPE 212-65	65	115	116	74
KY TYPE 212-80	80	130	131	74
KY TYPE 212-95	95	150	151	74
KY TYPE 212-102	102	150	156	74

Standard HG2098-91
Part Numbers	d	D	D1	L1
KY TYPE 212-40	40	87	87	74
KY TYPE 212-50	50	98	100	74
KY TYPE 212-60	60	110	105	74
KY TYPE 212-65	65	115	115	74
KY TYPE 212-70	70	120	115	74
KY TYPE 212-75	75	130	130	74
KY TYPE 212-80	80	130	130	74
KY TYPE 212-90	90	140	140	74
KY TYPE 212-95	95	145	150	74
KY TYPE 212-100	100	150	150	74
KY TYPE 212-110	110	162	165	74
KY TYPE 212-120	120	172	175	74
KY TYPE 212-130	130	182	177	74
KY TYPE 212-140	140	192	195	74
KY TYPE 212-150	150	202	205	74
