KY TYPE FB, Trisun TSFB, Automotive Pump Seals
Combined Materials:
Stationary Ring(Carbon/SiC/SSiC)
Rotary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)
Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums, etc.
Temperature: -20°C~100°C
Pressure: ≤0.3MPa
Speed: ≤ 10 m/Sec
Preview the KY TYPE FB PDF File
Download KY TYPE FB, Trisun TSFB, Automotive Pump Seals.pdf
If you have any questions, please send us an EMAIL about your technical applications.

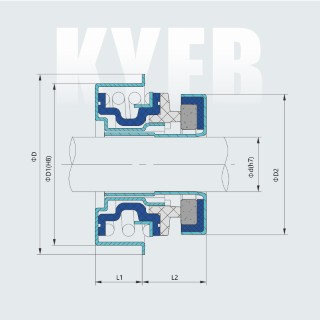

| Part Numbers | d | D | D1 | D2 | L1 | L2 |
| KY TYPE FB-12 | 12 | 35 | 30 | 25 | 8 | 9.7 |
| KY TYPE FB-12A | 12 | 38.5 | 33.4 | 25 | 6.7 | 11 |
| KY TYPE FB-12B | 12 | 32 | 28.55 | 25 | 8 | 9.7 |
| KY TYPE FB-13 | 13 | 35 | 30 | 25 | 8 | 9.7 |
| KY TYPE FB-15 | 15 | 41.5 | 36.45 | 30 | 8 | 11.2 |
| KY TYPE FB-5/8" | 15.875 | 41.5 | 34.2 | 30 | 5.6 | 12 25 |
| KY TYPE FB-5/8" A | 15.875 | 41.5 | 36.45 | 30 | 8 | 11.2 |
| KY TYPE FB-5/8" B | 15.875 | 41.5 | 38.1 | 30 | 8 | 11.2 |
| KY TYPE FB-16 | 16 | 41.5 | 36.45 | 32.5 | 8 | 11.2 |
| KY TYPE FB-16A | 16 | 41.5 | 38.1 | 32.5 | 8 | 11.2 |
| KY TYPE FB-20 | 20 | 43.8 | 38 | 37 | 9.5 | 12.5 |
| KY TYPE FB-20A | 20 | 43.8 | 40 | 37 | 9.5 | 12.5 |
Download the latest Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles Catalogue.
