KY BT-A2, Burgmann BT-A2, John Crane TYPE 6A, VULCAN TYPE 75, Pac-Seal TYPE 68, Trisun TSF, Automotive Pump Seals
Combined Materials:
Stationary Ring(Carbon/SiC/SSiC)
Rotary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)
Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums, etc.
Temperature: -20°C~100°C
Pressure: ≤0.3MPa
Speed: ≤ 10 m/Sec
If you have any questions, please send us an EMAIL about your technical applications.

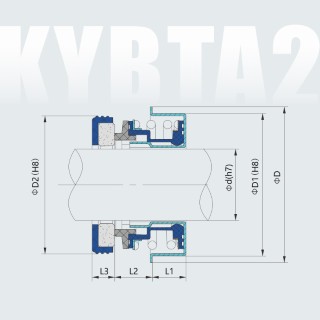

| Part Numbers | d | D | D1 | D2 | L1 | L2 | L3 |
| KY BT-A2-10 | 10 | 29 | 24 | 23 | 7 | 6 | 4 |
| KY BT-A2-12 | 12 | 32 | 28.55 | 25 | 8 | 5.2 | 5 |
| KY BT-A2-12A | 12 | 35 | 30 | 24 | 8 | 5 | 5 |
| KY BT-A2-12B | 12 | 38.5 | 33.4 | 25 | 6 | 7 | 5 |
| KY BT-A2-16 | 16 | 41.5 | 36.45 | 31 | 8 | 6.8 | 5 |
| KY BT-A2-16 | 16 | 41.5 | 38.1 | 31 | 8 | 6.8 | 5 |
| KY BT-A2-20 | 20 | 43.8 | 40 | 35 | 9.5 | 6 | 5 |
| KY BT-A2-25 | 25 | 51 | 46/47 | 44 | 10 | 8 | 7 |
| KY BT-A2-28 | 28 | 57 | 52 | 45 | 10.5 | 8 | 7.5 |
| KY BT-A2-30 | 30 | 57 | 52 | 48 | 11 | 8 | 8 |
| KY BT-A2-1/2" | 12.7 | 35 | 30 | 25.4 | 8 | 5 | 6.35 |
| KY BT-A2-5/8" | 15.875 | 41.5 | 36.45 | 31.75 | 8 | 6.7 | 10.3 |
| KY BT-A2-3/4" | 1905 | 43.8 | 40 | 34.925 | 9.5 | 6 | 10.3 |
| KY BT-A2-1" | 25.4 | 51 | 47 | 41.275 | 10 | 7.9 | 11.1 |
