KY ED560, EagleBurgmann ED560, Double Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Pumps: Submersible pumps, sewage pumps. Applied to the muddy water, sewage water or weakly corrosive fluids with solid grains.
Temperature: -20°C~100°C
Pressure: ≤0.5MPa
Speed: ≤ 8 m/Sec

Download KY ED560, EagleBurgmann ED560, Double Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

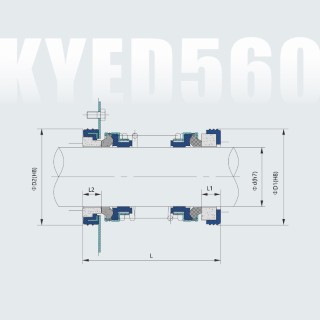

Part Numbers d D1 D2 L L1 L2
KY ED560-12 12 25 25 36 5 5
KY ED560-13 13 25 25 36 5 5
KY ED560-14 14 30 30 36 5 5
KY ED560-15 15 30 30 36 5 5
KY ED560-16 16 30 30 36 5 5
KY ED560-18 18 35 38 49 7 7
KY ED560-19 19 35 38 49 7 7
KY ED560-20 20 38 44 49 7 7
KY ED560-25 25 44 50 51 7 7
KY ED560-30 30 50 57 59 9 8
KY ED560-35 35 58 64 61 9 9
KY ED560-40 40 64 70 64.5 11 9
KY ED560-45 45 66 70 65 10 9
KY ED560-50 50 72 80 69.5 10 9
