KY TYPE 152, Teflon Bellow Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Rotary Ring (Teflon/SiC/SSiC)
Secondary Seal (Teflon)
Spring and Metal Part (SS304/SS316)

Working Conditions:
Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid,and nitric acid with various degrees, etc.
Temperature: ≤120°C
Pressure: ≤0.5MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 152 PDF File

Download KY TYPE 152, Teflon Bellow Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

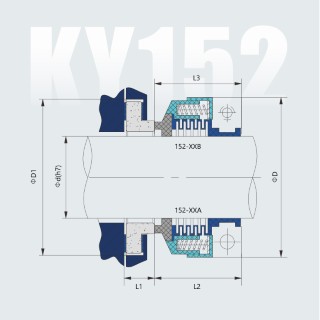

Part Numbers	d	D	D1	L1	L2	L3
KY TYPE 152-25	25	60	48	13	42	45
KY TYPE 152-30	30	67	53	13	42	45
KY TYPE 152-35	35	72	58	13	42	45
KY TYPE 152-40	40	78	63	13	42	45
KY TYPE 152-45	45	84	68	16	44	46
KY TYPE 152-50	50	88	73	16	46	46
KY TYPE 152-55	55	95	78	16	46	46
KY TYPE 152-60	60	100	83	17	46	46
KY TYPE 152-65	65	105	88	17	46	46
